Als de professionele productie willen we u Rotary Die bieden om de automatische snijmachine te maken. En we bieden u de beste after-sale-service en tijdige levering. U bent welkom om naar onze fabriek te komen om de nieuwste verkoop, lage prijs en hoogwaardige roterende dobbelsteen te kopen, waardoor kreukende automatische snijmachine wordt gemaakt. We kijken ernaar uit om met u samen te werken.
The following is the introduction of high quality Rotary Die Making Creasing Auto Cutting Machine, hoping to help you better understand Rotary Die Making Creasing Auto Cutting Machine. Welcome new and old customers to continue to cooperate with us to create a better future!

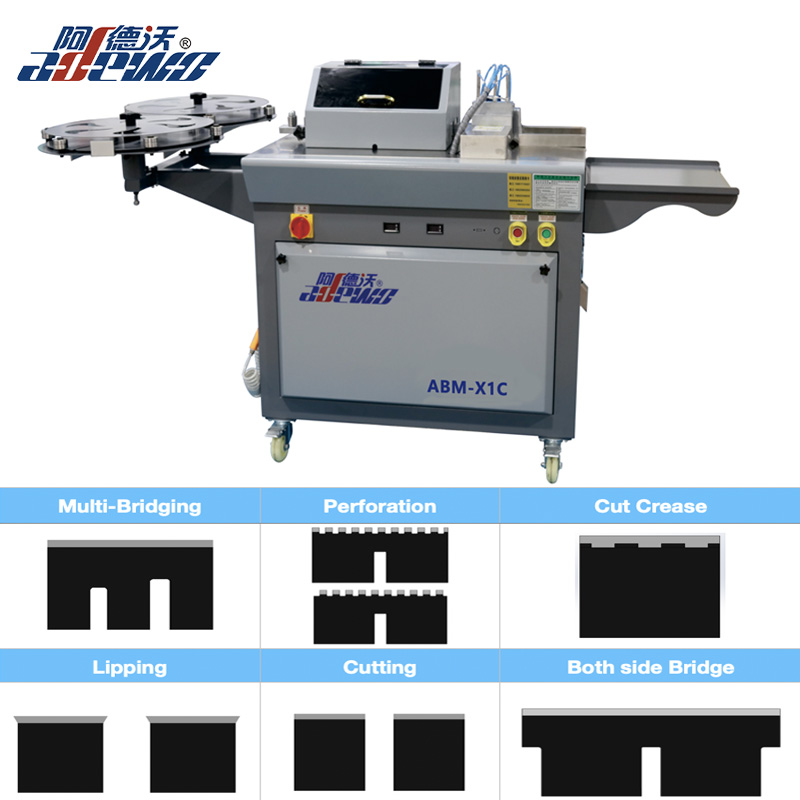

Picture of (ABM-X1C)Rotary Die Making Creasing Auto Cutting Machine for reference:
1.(ABM-X1C)Rotary Die Making Creasing Auto Cutting Machine included functions:Bridge,Lipping,Cutting,Both side Bridge.
Optional functions:Perforation,Cut Crease
2.This Rotary Die Making Creasing Auto Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.
3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.

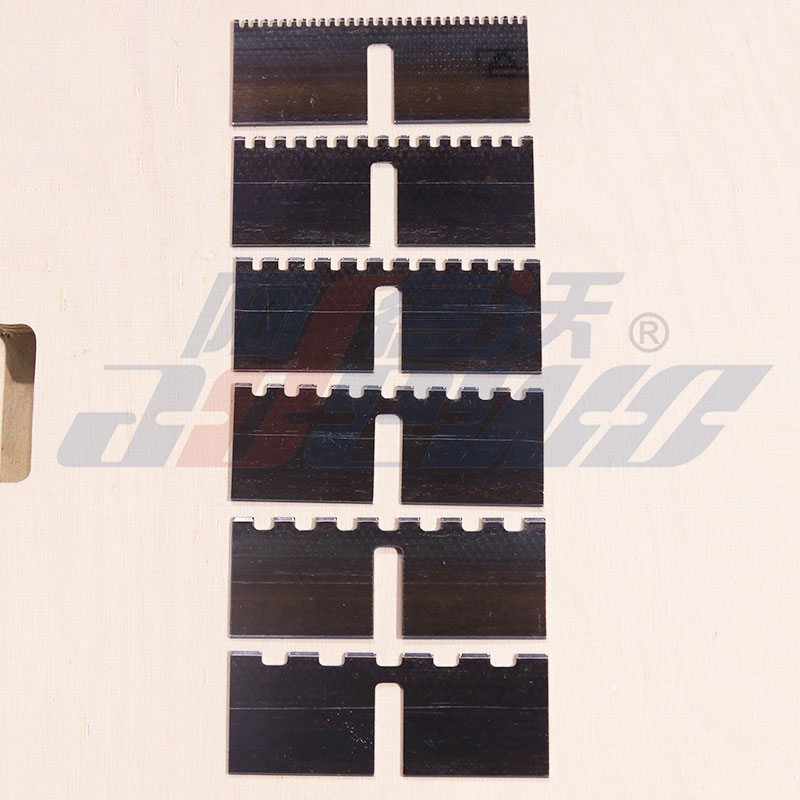

4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.

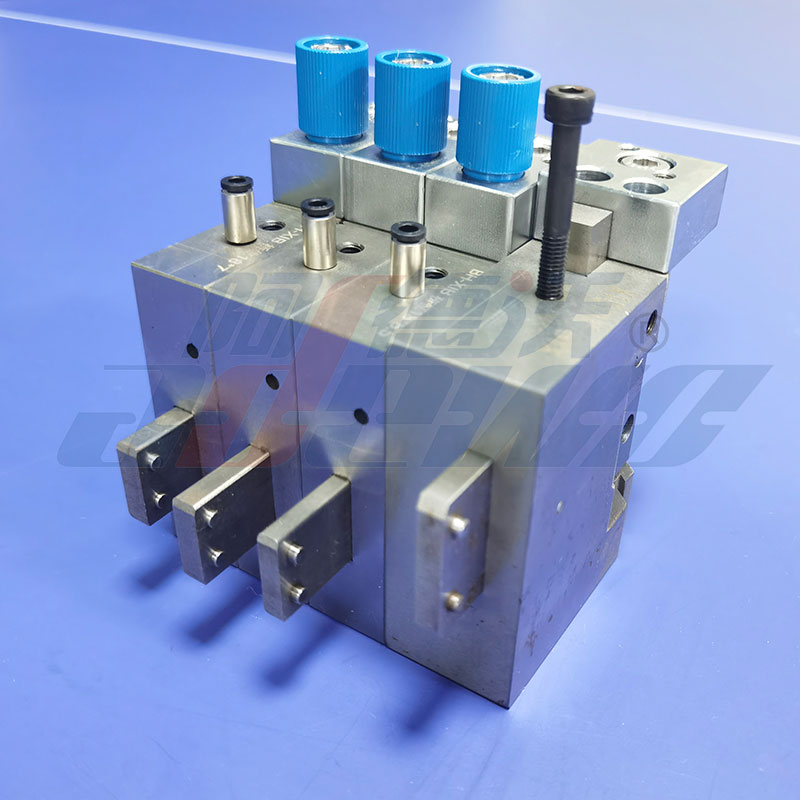

5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

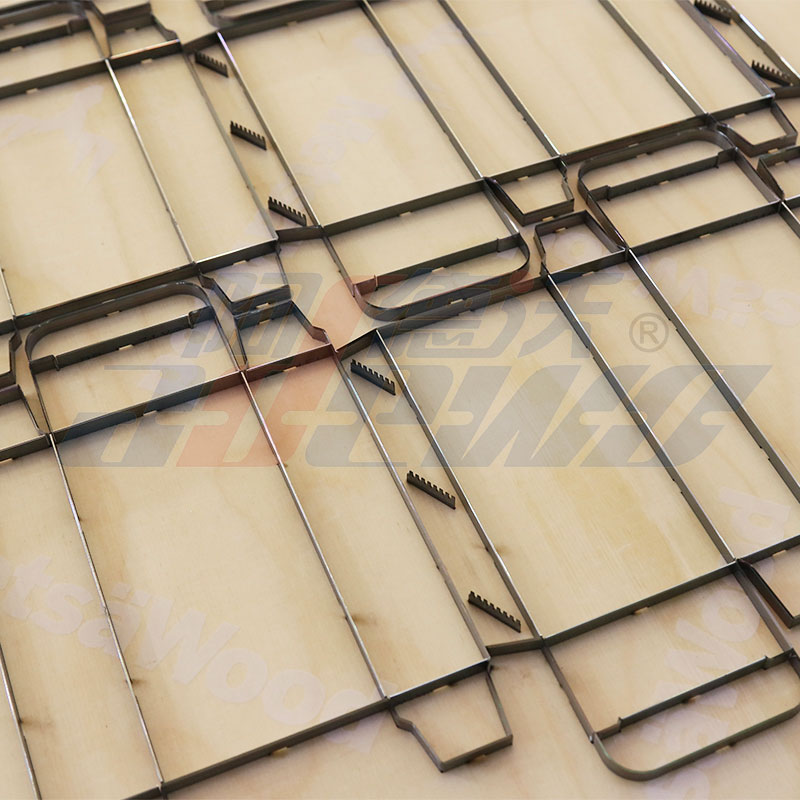

6.This Rotary Die Making Creasing Auto Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt,3pt,4pt) |
|
Supported rule height(mm) |
22-26mm |
|
Basic Functions |
Bridge,Lipping,Cutting,Both side Bridge |
|
Optional Functions |
Perforation,Cut Crease |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
220V,2KW |
|
Weight |
260KGS |
|
Overall dimension |
1220×760×1200mm(L×W×H) |
|
H.S. Code |
8461500090 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Rotary Die Making Creasing Auto Cutting Machine?
7-10 working days.
4.How about installation and training of Rotary Die Making Creasing Auto Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Rotary Die Making Creasing Auto Cutting Machine?
Yes,the new order machine with free spare tools.
