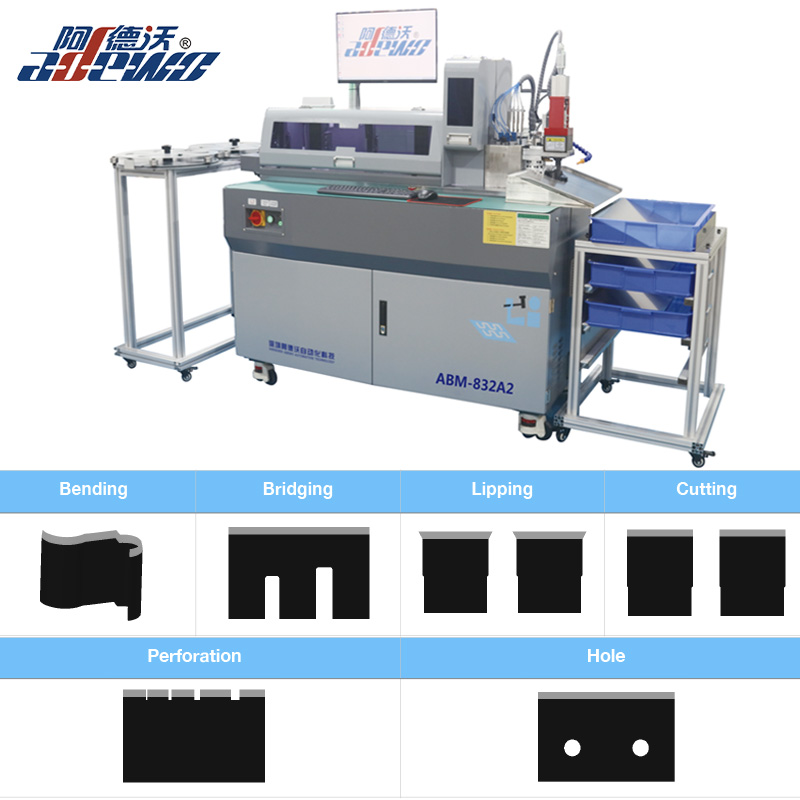

Het nieuwste model (ABM-832A2) Steel Rule Auto Bender Machine met perforatie omvatte functies: buigen, brug, perforatie, lippen en snijden. Ondersteunde stalen regeldikte 0,71,1,05 mm (2pt en 3pt), hoogte 8-32 mm. China Adewo is succesvol geweest voor veel binnenlandse en buitenlandse dobbelsteen- en drukbedrijven om geavanceerde auto -buigmachines, kosteneffectieve, technische ondersteuning en uitstekende after -verkoopservice te bieden.
1.Bending and cutting in one,more safety of cutting. High efficiency of bending and cutting.

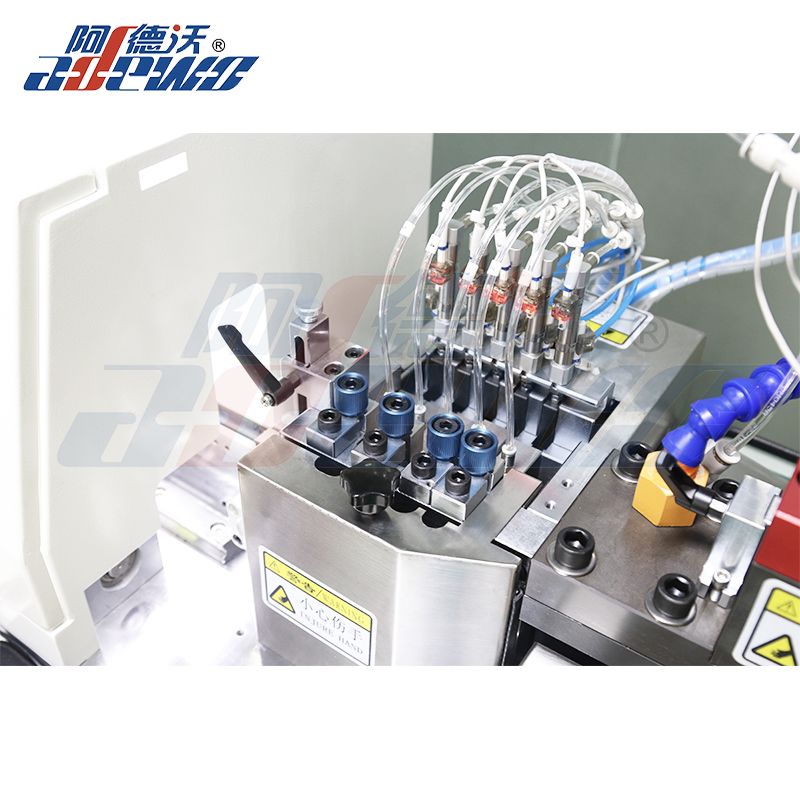

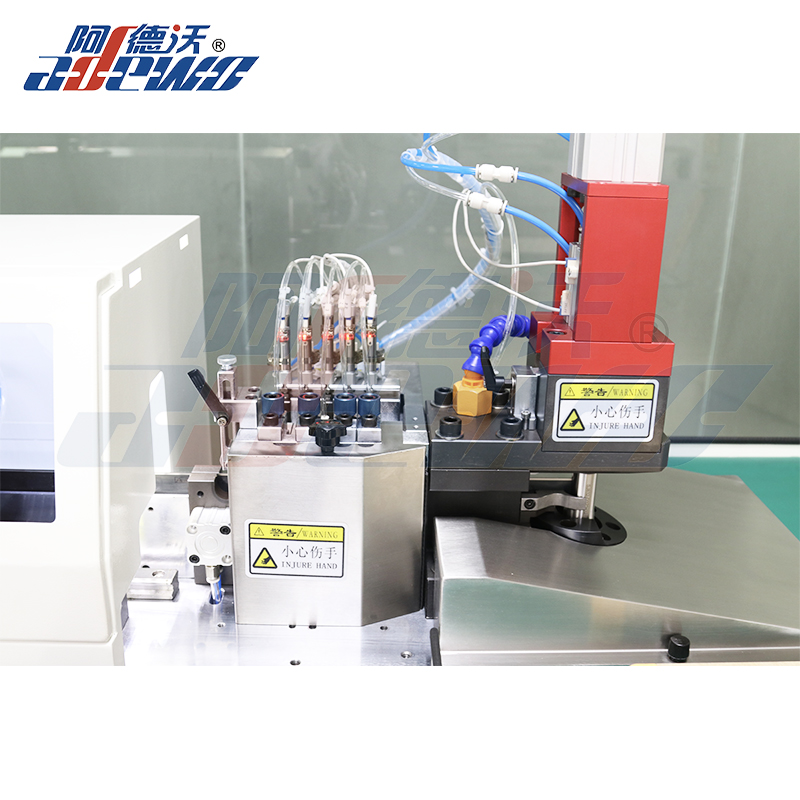

2.Multi-Punch tool for choice:Lipping, Mold Cut, Bridge, Hole or Perforation, independent tool, easy toreplace.

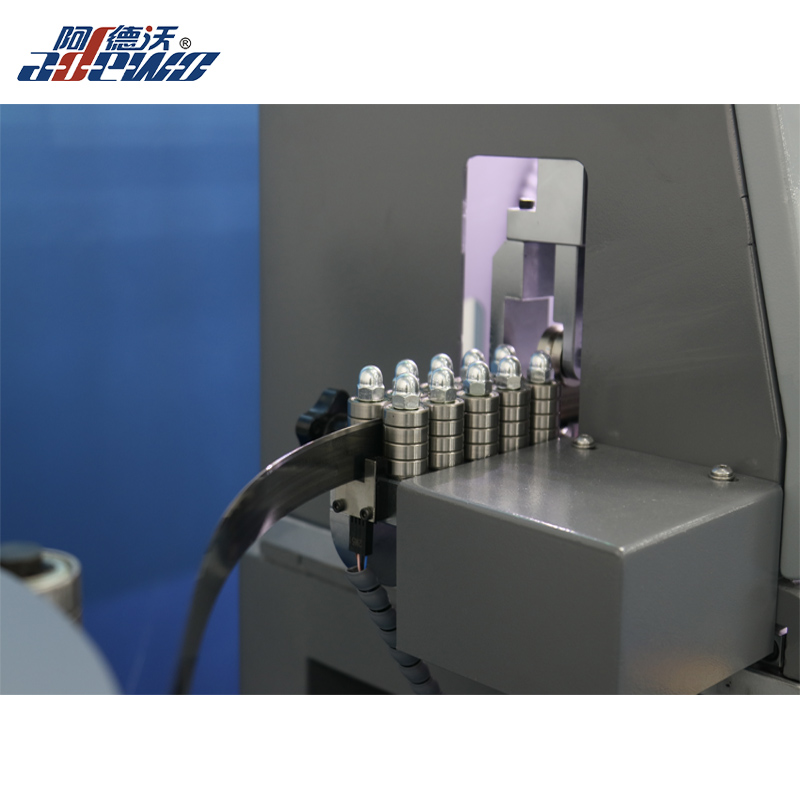

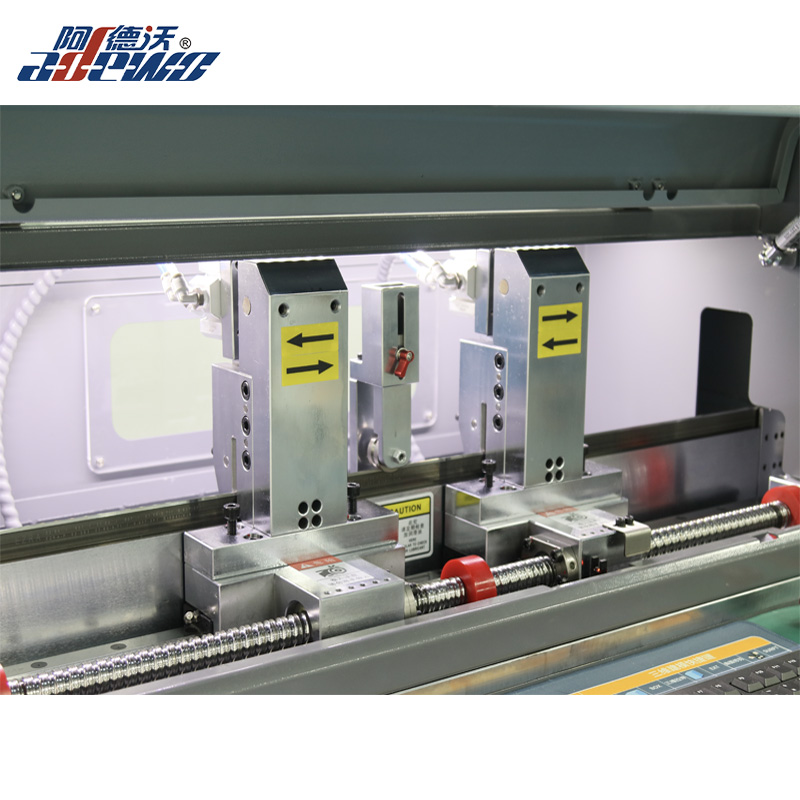

3.Double clamps,screw guide feeding continuously, improves work efficiency.
4.Smart software,easy to operate, multi language available.
|
Supported rule thickness(mm) |
0.45/0.53/0.71/1.05mm (1/1.5/2/3pt) |
|
Supported rule height(mm) |
8-32mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. (Can be customized) |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Lipping,Cutting |
|
Optional Functions |

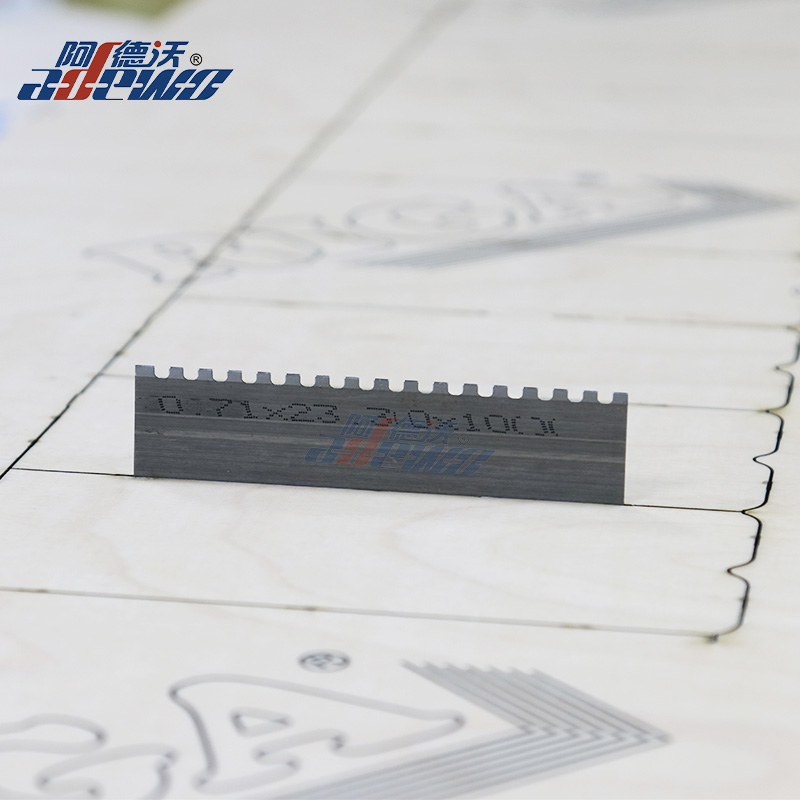

Perforation/Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
528KG |
|
Overall dimension |
2850x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
